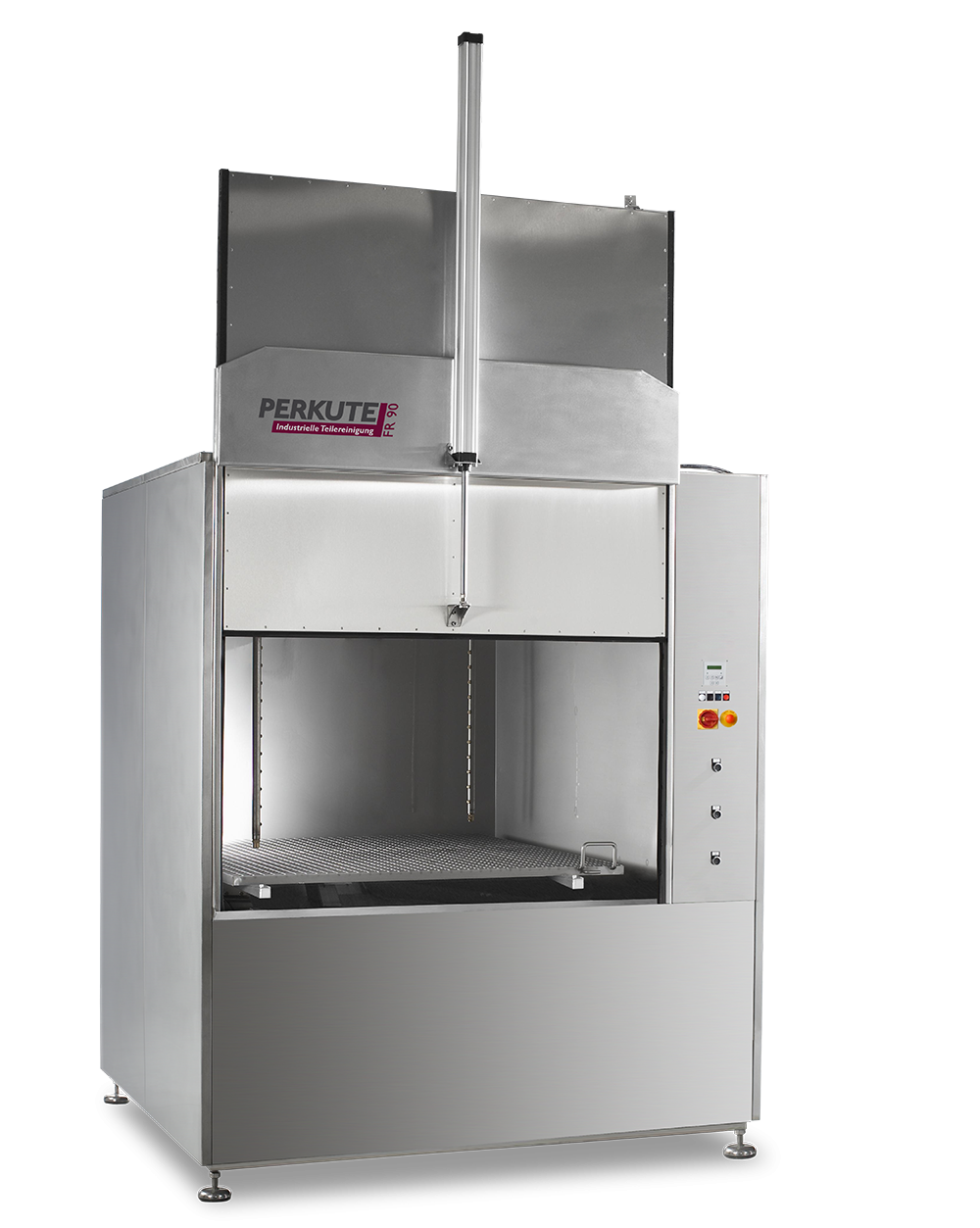

The PERKUTE Clean-o-mat FR cleaning system is a powerful front-loading solution for thorough parts cleaning of large-volume components as well as small batch parts in the tightest of spaces. Thanks to the generous working area volume, even bulky parts, crates or pallets can be reliably processed. This makes the system suitable for a wide range of applications in industry and in the workshop.
The workpieces can be fed into the system effortlessly by crane loading or transfer from the loading trolley. This ergonomic concept facilitates the handling of heavy workpieces, reduces set-up times and ensures efficient processes both in industrial production and in the workshop.
With a robust stainless steel design, a powerful washing pump and an efficient spraying system, the Clean-o-mat FR cleaning system from PERKUTE guarantees consistent and thorough results. The modern Siemens S7-1200 control system ensures process reliability in industrial companies and workshops that depend on reliability.
A special feature is the possibility of accommodating several process stages in a single washroom. This makes the cleaning system flexible to use, whether for standard workshop tasks or for complex applications in industrial production. With optional extensions such as multi-tank systems or drying units, the Clean-o-mat FR offers an economical and future-proof solution for companies that rely on maximum cleanliness and efficiency in industry and workshops.
Dimensions |
|
|---|---|
| Cleaning grid | Ø 1300 x 1300 mm |
| Usable height | 1000 mm |
| Loading height | 925 mm |
| Overall height (machine) (with lifting door open) | 3550 mm |
| Total width (machine) | 1880 mm |
| Total depth (machine) | 1670 mm |
| Total weight (machine) | 350 kg |
Load |
|
| Permissible basket load | 500 kg |
Cleaning |
|
| Liquid volume | 600 l |
| Pump delivery rate | 350 l/min |
| Injection pressure | 4 bar |
Supply |
|
| Pump motor VA | 4 kW |
| Heat output | 18 kW |
| Steam extraction | 0.45 kW |
| Connected loads | 230/400 V / 35 A / 50 Hz |
