The PERKUTE Clean-o-mat FR cleaning system is a powerful front-loading solution for thorough parts cleaning of large-volume components as well as small series parts in the tightest of spaces. Thanks to the generous working area volume, even bulky parts, crates and the like can be reliably processed. This makes the system suitable for a wide range of applications in industry and in the workshop.

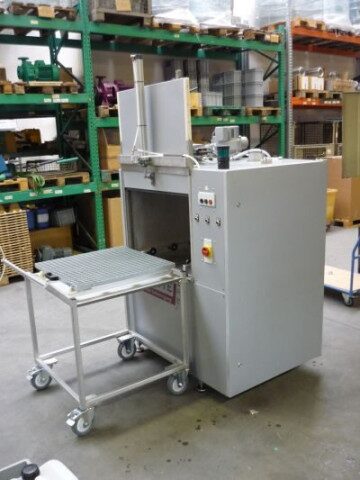

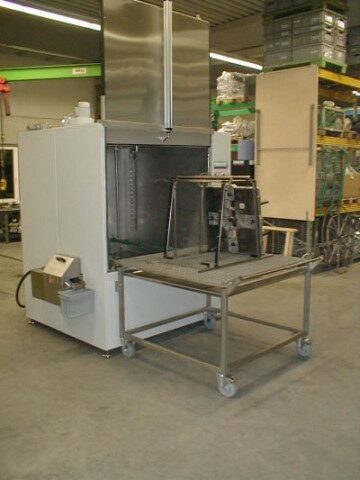

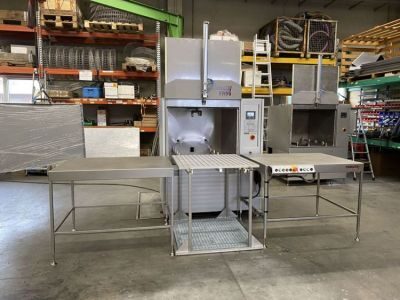

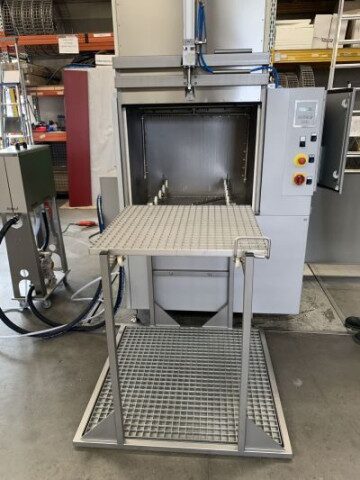

The workpieces can be fed into the system effortlessly by crane loading or transfer from the loading trolley. This ergonomic concept facilitates the handling of heavy workpieces, reduces set-up times and ensures efficient processes both in industrial production and in the workshop.
With a robust stainless steel design, a powerful washing pump and an efficient spraying system, the Clean-o-mat FR cleaning system from PERKUTE guarantees consistent and thorough results. The modern Siemens S7-1200 control system ensures process reliability in industrial companies and workshops that depend on reliability .
A special feature is the possibility of accommodating several process stages in a single washroom . This makes the cleaning system flexible to use, whether for standard workshop tasks or for complex applications in industrial production. With optional extensions such as multi-tank systems or drying units, the Clean-o-mat FR offers an economical and future-proof solution for companies that rely on maximum cleanliness and efficiency in industry and workshops.
Front loader cleaning system for industry & workshop

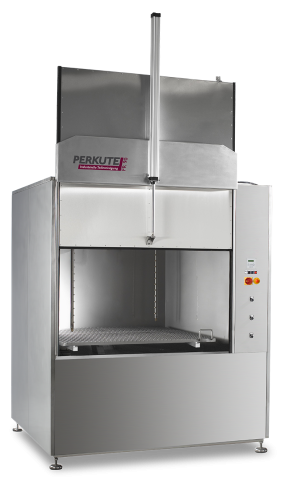

Clean-o-mat FR front loader
Flexible front-loader cleaning system for efficient parts cleaning and bulky components
Basic equipment of the cleaning system
- Stainless steel design ensures corrosion resistance and a long service life.
- Easy handling enables convenient operation and makes everyday work easier.
- Space-saving design allows use even in confined spaces.
- Bath cover with filter basket reduces heat loss and reliably retains coarse particles.
- Low water cut-out reliably protects the pump and heating elements from running dry.
- Stainless steel exhaust filter upstream of the pump increases operational reliability and reduces faults.
- Connection piece for steam extraction improves the working environment through safe drainage.
- Operating cost minimization through housing insulation in sandwich design reduces energy losses.
- Rotating nozzle pipe system with flat jet nozzles ensures even and thorough cleaning of all surfaces.
- Adjustable feet ensure stable installation even on uneven floors.
- Pneumatic lifting door facilitates loading and ensures greater ergonomics.
- Programmable electronic control allows precise adjustment to different cleaning tasks.
Executions
|
Clean-o-mat FR 70
|
Clean-o-mat FR 90
|
Clean-o-mat FR 130
|
|
| Connected loads | 230/400 V / 20 A / 50 Hz | - | 230/400 V / 35 A / 50 Hz |
|---|---|---|---|
| Dampfabsaugung | - | - | - |
| Heat output | 9 kW | - | 18 kW |
| Pump motor VA | 1.5 kW | - | 4 kW |
| Loading height | 915 mm | - | 925 mm |
| Usable height | 450 mm | - | 1000 mm |
| Cleaning grid | Ø 700 x 700 mm | - | Ø 1300 x 1300 mm |
| Liquid volume | 200 l | - | 600 l |
| Total width (machine) | 1220 mm | - | 1880 mm |
| Total weight (machine) | 180 kg | - | 350 kg |
| Overall height (machine) (with lifting door open) | 2300 mm | - | 3550 mm |
| Total depth (machine) | 1000 mm | - | 1670 mm |
| Permissible basket load | 300 kg | - | 500 kg |

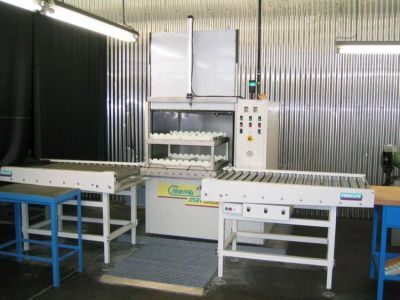

Application examples
Here you can see various application examples and optional extras for the PERKUTE Clean-o-mat FR cleaning system.

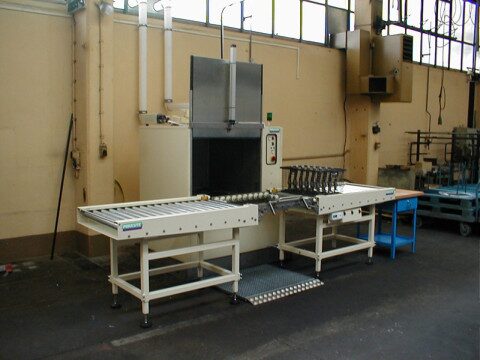

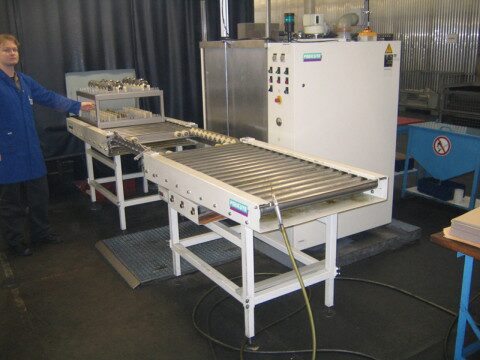

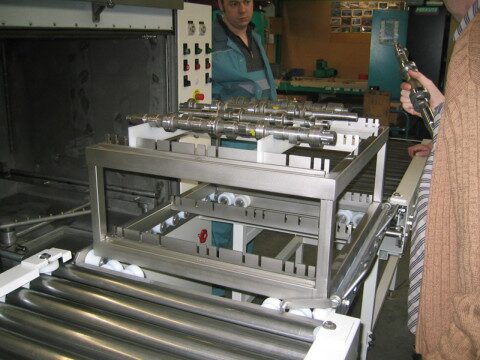

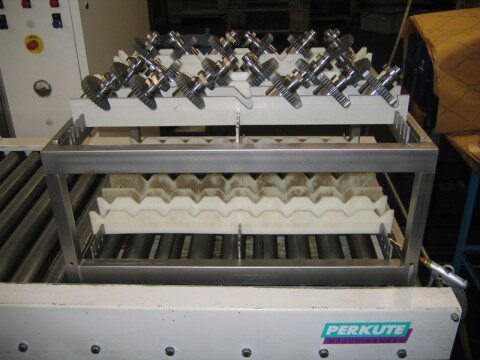

Application example: Cleaning crankshafts and pinions
The FR 70 front loader is equipped with a roller conveyor and designed for use directly in production.
The system is suitable for degreasing crankshafts and pinions in variable workpiece carriers - ideal as preparation before the hardening process.
The system is suitable for degreasing crankshafts and pinions in variable workpiece carriers - ideal as preparation before the hardening process.

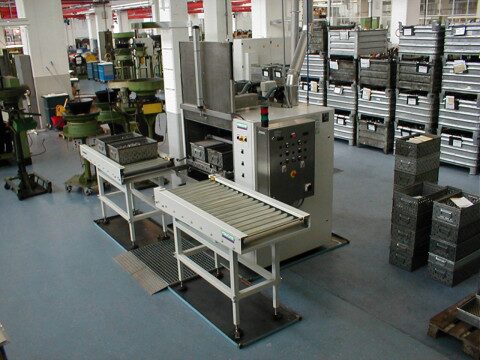

Application example: Cleaning and drying cages

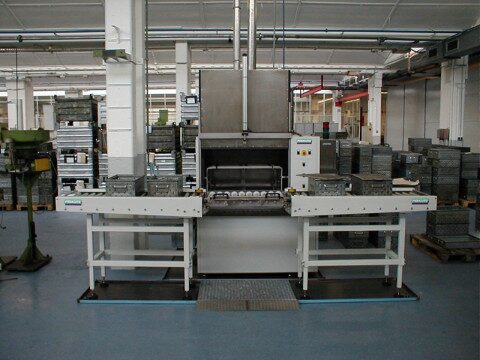

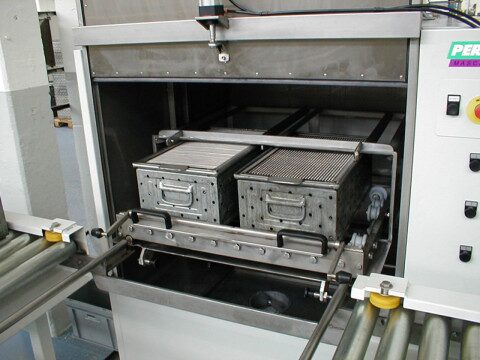

The FR 90 front loader is equipped with a drum device and a roller conveyor. It is ideal for cleaning and drying cages in shepherd's crates and ensures consistently clean results in production thanks to the automated process.
